External Thermal Insulation Composite Systems (ETICS), applied to the facades of buildings and also known as Thermal Insulation Package System, are subject to the Construction Products Regulation (CPR, 305/2011/EU) which is an obligatory legislation in both EU and Türkiye, Legislation Regarding the Criteria for Construction Products (2009/RG 27270), and Fire Protection Code of Buildings (2007/12937 and 2015 RG. 7401), which are domestic legislations of the Republic of Türkiye, and finally to the following European Assessment Documents (EAD):
√ European Assessment Documents (EAD)
EAD 040083-00-0404 External Thermal Insulation Composite Systems (ETICS) with Renderings – EU Decision 2020/1574
EAD 040089-00-0404 External Thermal Insulation Composite Systems (ETICS) for the Use on Timber Frame Buildings) – EU Decision 2017/C 118/04
EAD 040287-00-0404 – Kits for External Thermal Insulation Composite System (ETICS) with Panels as Thermal Insulation Product and Discontinuous Claddings as Exterior Skin) – EU Decision 2018/C 019/04
EAD 040427-00-0404 – Kits for External Thermal Insulation Composite System (ETICS) with Mortar as Thermal Insulation Product and Renderings or Discontinuous Claddings as Exterior Skin) – EU Decision 2019/450
EAD 040759-00-0404 – External Thermal Insulation Composite System (ETICS) with Rendering on Boards Based on Polystyrene and Cement (which is expected to be published by Official Journal of the EU, OJEU)
European Assessment Document (EAD) is a harmonized technical specification, designed by the EOTA to provide a basis for the European Technical Assessments (ETA). The ETA document facilitates the CE marking of construction products, which are not covered by a harmonized European standard (hEN) within the scope of Construction Products Regulation (EU) 305/2011, for manufacturers. CE marking enables the manufacturers to freely market their product in European Economic Area, Switzerland, and Türkiye.
External thermal insulation composite systems (ETICS), are subject to the EADs listed above, and are subject to CE marking in the provision of the ETA document and the Consistency of Performance certificates.

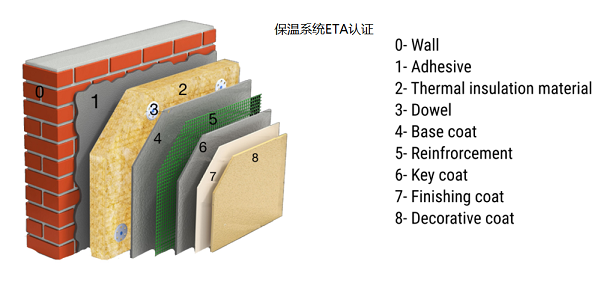

The EADs defined for these thermal insulation systems include comprehensive testing and certification processes, which require that the performance of the system is tested as a whole kit, to determine the final performance of the assembled components of the system (thermal insulation material, adhesive, rendering, glass-fiber mesh, surface coating materials and all components within the system) through tests that simulate real life conditions. According to EAD, the ETA (European Technical Assessment) Document is issued by a Technical Assessment Body (TAB) approved by the European Organization for Technical Approvals (EOTA) for ETICS.
For example, the EAD 040083-00-0404 document, which is valid for external composite thermal insulation systems with renderings, requires a rigorous testing process including component and system-based Reaction to Fire tests for evaluating system performance, Hygrothermal experiments (simulating the 25 years of performance of the system under precipitation, hot and cold/freezing conditions) on large-scale walls, followed by tests for performances including but not limited to the weathered surface properties, cracking test, impact resistance, and perforation. ETA and Consistency of Performance certificates are issued when both the FPC (Factory Production Control) audit carried out by the Notified Body assigned in the relevant EAD, and the evaluation of the consistency of performance according to System 1 have positive results, along with the testing process defined above.
TZUS, a European Technical Assessment body and a Notified Body, perform performance tests for thermal insulation composite systems manufactured by their customers in the TZUS laboratory in Czechia, and reaction to fire tests of system and its components manufactured by their customers in the Efectis Era laboratory in Dilovas?, Türkiye. In the case that the audit processes show performance consistency is maintained, TZUS sp issues the Performance Consistency Certificates required for ETA and the CE marking.
√ 捷克TZUS(NB1020)介绍 参考：https://www.fire-test.com/newsinfo/5378918.html
TZUS是捷克国家认证机构，可以根据欧盟相关规定来签发CE证书。
TZUS同时也是ETA(European Technical Approval)的认证委员之一，可以根据相关法规来签发ETA证书。
ETA认证是在欧盟CE建筑产品法规Construction Products Regulation (EU) No. 305/2011背景下的辅助认证模式，欧盟CE认证目的是解除欧洲对于建筑建材产品的不同标准而可能导致的技术壁垒。当一个建筑产品于欧盟CE建筑产品法规之下没有对应的产品安全标准时，可以用ETA认证的方式来符合欧盟的法规。
欧盟公告NB机构&TAB机构-TZUS(NB1020)欧盟强制CE认证及ETA认证 参考：http://www.cprce.com/Certification/eta/919.html
√ 欧洲ETA认证成员
EOTA成员有：捷克共和国TZUS&CSI、斯洛伐克共和国TSUS、奥地利OIB、比利时BUTGA、塞浦路斯PWD、丹麦ETA-DANMARK、爱沙尼亚TUT、芬兰VTT、法国CSTB&SETRA、德国DIBt、希腊ELOT、匈牙利EMI、冰岛NMI、意大利STC&CSEA、立陶宛SPSC、卢森堡PCH、荷兰SBK&INTRON&SKH&IKOB-BKB BV&BMC&SKG&KIWA&TNO、挪威SIN TEF、波兰ITB、葡萄牙LNEC、斯洛文尼亚ZAG、西班牙IETc c &ITeC、瑞典SITAC、瑞士EMPA、土耳其ITBAK。
睿督SMART提供ETA认证，ETA报告，ETA评估报告，锚栓ETA认证，化学锚栓ETA认证，车修壁虎ETA认证，植筋胶ETA认证，石笼网ETA认证，镀锌铝合金格宾及雷诺护垫，干挂系统ETA等产品的ETA认证服务
南京睿督公司为欧盟公告号Notified Body实验室授权合作实验室，可以直接受理建材CE认证及ETA认证。
